  2. Simpson Strong-Bolt® 2 Wedge Anchor 1/2 x 5-1/2
Brand Name: Simpson Strong Tie
Manufacturer Part Number: STB2-50512

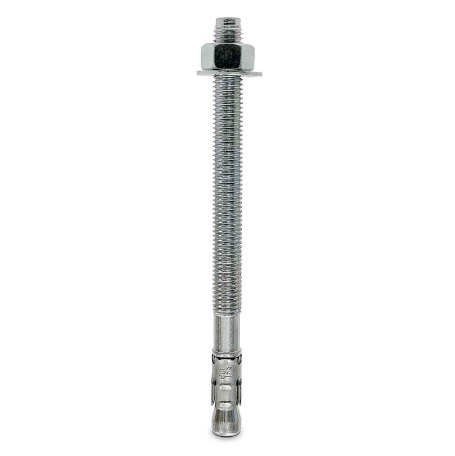

Simpson Strong-Bolt® 2 Wedge Anchor 1/2 x 5-1/2

https://www.lbsaustin.com/web/image/product.template/16116/image_1920?unique=bd5d288

$ 1.58 1.58 USD $ 1.58

$ 1.58

No está disponible para venta

  • Marca
  • Product Type

Esta combinación no existe.

Contáctenos
Marca: Simpson Strong Tie
Product Type: Hardware

Términos y condiciones
 In-Store Pickup Only

Legacy Builder Supply - Austin
16064 Central Commerce Dr
Pflugervilee, TX 78660
The BOSS

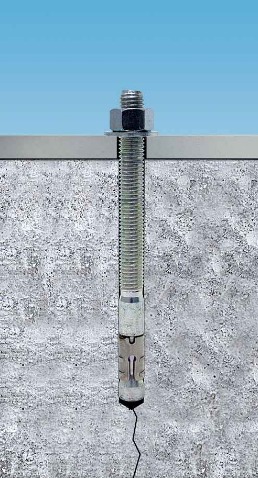

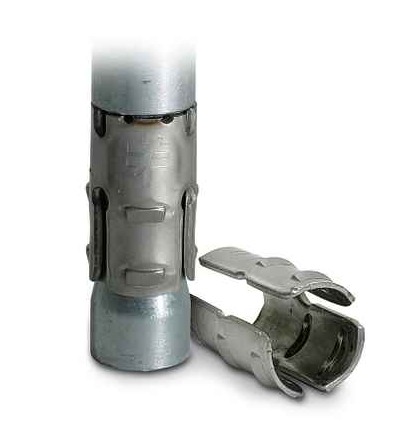

Code listed for cracked and uncracked concrete, and masonry applications, the Strong-Bolt 2 wedge-type expansion anchor is an optimal choice for high-performance even in seismic and high-wind conditions. Dual undercutting embossments on each clip segment enable secondary expansion should a crack form and intersect the anchor location; this feature significantly increases the ability of Strong-Bolt 2 to carry load if the hole expands.

  • Chamfered top designed to prevent mushrooming during installation
  • Qualified for static and seismic loading conditions (seismic design categories A through F)
  • Suitable for horizontal, vertical and overhead applications
  • Qualified for minimum concrete thickness of 3 1/4", and lightweight concrete-over-steel deck thickness of 2 1/2" and 3 1/4"
  • Standard (ANSI) fractional sizes: fits standard fixtures and installs with common drill bit and tool sizes
  • Tested per ACI355.2 and AC193

Model No.
STB2-50512
Description
Unassembled
Coating/Material
Zinc Plated / Carbon Steel
Size (in.)
1/2 x 5 1/2
Drill Bit Dia. (in.)
1/2
Thread Length (in.)
3 13/16
Component Material, Anchor Body
Carbon Steel
Component Material, Nut
Carbon Steel ASTM A 563, Grade A
Component Material, Washer
Carbon Steel ASTM F844
Component Material, Clip
Carbon Steel ASTM A 568
Packaging QTY
1
